high voltage Steel Tape Armor STA XLPE power cable

Price:	2.0~66.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: HV cable

Production Capacity: 10000m/week

Delivery Date: 15days for one container

Type: High Voltage

Jacket: PVC

Brand Name: Aodian

Means of Transport: Ocean,Land,Air

Packing: standard wooden drum or ste...

Application: Underground

Insulation Material: XLPE

Conductor Material: Copper

type: high voltage XLPE insulated...

1. STA high voltage cable
2. good producer
3. many types available
4. good delivery time
5. excellent quality

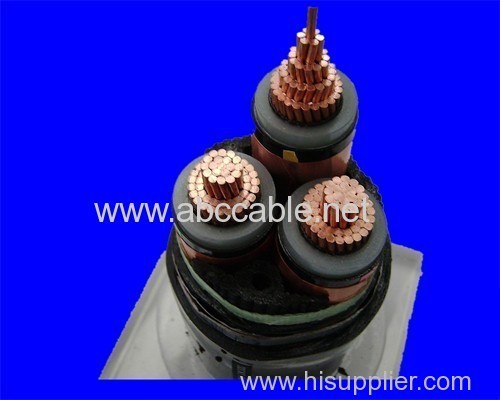

high voltage Steel Tape Armor STA XLPE power cable

Application

Al-electric high voltage Steel Tape Armor STA XLPE power cable is used to transmit and distribute power in power transmission and distributionsystem of 35kV or lower. It is widely adopted in the fields including power,construction, mines, metallurgy, petrochemical industry and communication incomplete replace of oil immersed paper insulated power cable and in partial re -place of PVC insulated power cable.

Excutive Standard

GB/T12706-2008 standard

IECstandard

Our general types of the high voltage Steel Tape Armor STA XLPE power cable

Type		Description	Application
Cu	Al	Description	Application
YJV	YJLV	XLPE insulation PVC sheath power cable	To be laid indoors, in tunnel, cable furrow or pipe, the cable couldn't bearmechanical force outside
YJY	YJLY	XLPE insulation PE sheath power cable
YJV22	YJLV22	XLPE insulation, steel tape armor,PVC sheath power cable	To be laid underground, the cable could bear certain mechanical force, but itcouldn't bear great pulling force.
YJV23	YJLV23	XLPE insulation, steel tape armor,PE sheath power cable
YJV62	YJLV62	XLPE insulation, have no the magnetism steel tape armor,PE sheath powercable
YJV32	YJLV32	XLPE insulation, thin steel-wirearmor,PVC sheath power cable	Be applicable to the well, water inside and fall in the bad soil, the cablecans bear the equal dint outside the machine with pull the dint .
YJV72	YJLV72	XLPE insulation, have no the magnetism thick steel-wirearmor,PVC sheathpower cable
YJV42	YJLV42	XLPE insulation, thick steel-wirearmor,PVC sheath power cable	Be applicable to the well, underwater with the bottom of sea, the cable cansbear the bigger pressure with lead to pull thedint.

U0/Um(kv)

No.of Core

1st class

0.6/1kv

1.8/3kv

3.6/6kv

6/10kv

8.7/15kv

12/20kv

18/30kv

21/35kv

2nd class

1/1kv

3/3kv

6/6kv

8.7/10kv

12/15kv

18/20kv

26/35kv

1 Core

Section

area(mm2)

1.5-800

25-800

35-800

50-800

2 Core

Section

Area(mm2)

1.5-185

3 Core

Section

area(mm2)

1.5-400

25-400

35-400

50-400

4 Core

Section

Area(mm2)

2.5-400

25-400

5 Core

Section

area(mm2)

2.5-400

25-400

Item	Code	Explanation
Flame-retardant Character	-	Non Flame-retardant
	ZR	Flame-retardant 3 Classes including A, B ,C
	WD	Low smoke and halogen free
	NH	Fire-resistance
Insulation	YJ	XLPE
Conductor	-	Copper conductor
Conductor	L	Aluminum conductor
Sheath or Inner Sheath	V	PVC
	V_D	Low smoke & Low Halogen flame-retardant PVC
	Y	PE
	E	Low smoke & Halogen-free flame-retardant polyolefin
Armor Layer	2	Double steel tape armor
	3	Thin steel wire armor
	4	Thick steel wire armor
Outer Protection Layer	2	PVC
Outer Protection Layer	3	PE
