20KV 35KV Aluminum conductor power cable 70mm2 95mm2 120mm2

Price:	0.3~24.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: YJV

Production Capacity: 50000m/week

Delivery Date: 15days for one container

Type: High Voltage

Jacket: PVC

Brand Name: Aodian

voltage: high voltage

Conductor: copper

size: 50mm2 70mm2 95mm2 120mm2

Means of Transport: Ocean,Land,Air

Packing: standard wooden drum or ste...

Application: Underground

Insulation Material: XLPE

Conductor Material: Copper

type: power cable

insulation: XLPE

color: red/black/blue/yellow/green...

standard: IEC

1. 25KV 33KV
2. aluminum core
3. excellent price
4. all colors available
5. factory service

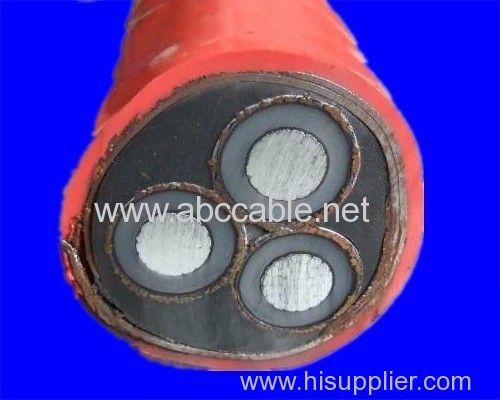

20KV 35KV Aluminum conductor power cable 70mm2 95mm2 120mm2

Application:

The Al-electric 20KV 35KV Aluminum conductor power cable 70mm2 95mm2 120mm2 cab used for laying indoor, tunnel , underground and canan, shaft water underground andlarge difference of level , able to bear larger mechanical pressure and pulling force.

Construction:

aluminum conductor or copper conductor

XLPE insulated

copper wire screen

aluminum wire armoured/steel wire armor/steel tape armor

PVC or PE or HDPE sheath

Technical data:

Max. conductor operating temperature: 90

short circuit temperature of operating:

in air: 40

underground: 25

depth of laying in direct: 80CM

thermal resisitance of soil: 100c.cm/W

Standard:

IEC, BS, DIN, ASTM,CSA, AS, ASIN etc

Nominal Cross Sectional Areamm²	Nominal Overall Diametermm
1 x 70	41.0
1 x 95	42.9
1 x 120	44.5
1 x 150	47.3
1 x 185	49.3
1 x 240	51.7
1 x 300	54.4
1 x 400	57.7
1 x 500	61.1
1 x 630	65.0
1 x 800	71.6
1 x 1000	76.5
3 x 50	78.2
3 x 70	82.1
3 x 95	86.1
3 x 120	90.0
3 x 150	93.2
3 x 185	97.5
3 x 240	103.3
3 x 300	108.8
3 x 400	116.1

Three Core Cu/XLPE/PVC/SWA/PVC Cable

Cross section mm2	Insulation Thickness mm	armoring size		Approx. Overall Dia.& Weight
		fine steel wire dia. mm	thick steel wire dia. mm	fine steel wire armor		thick steel wire armor
				Overall dia. mm	Weight kg/km	Overall dia. mm	Weight kg/km
				Overall dia. mm	Weight kg/km	Overall dia. mm	Weight kg/km	25	3.4	2.5	4.0	48.9	4135	55.0	6002
35	3.4	2.5	4.0	51.3	4658	57.4	6524
50	3.4	2.5	4.0	54.1	5355	59.7	7296
70	3.4	2.5	4.0	58.1	6311	63.8	8393
95	3.4	2.5	4.0	62.1	7415	67.6	9616
120	3.4	2.5	4.0	65.6	8478	70.9	10716
150	3.4	2.5	4.0	69.3	9678	74.6	11980
185	3.4	2.5	4.0	73.1	11093	78.6	13525
240	3.4	3.15	4.0	80.4	14191	84.0	15799
300	3.4	3.15	4.0	85.4	16456	88.8	18104
400	3.4	3.15	4.0	93.0	20187	96.4	21995

Types and application

Model		Voltage level	Number of cores	Description	Application
Cu Core	Al Core	Voltage level	Number of cores	Description	Application
YJV ZR-YJV	YJLV ZR-YJLV	0.6/1kV	1 core 2 core 3 core 4 core 5 core 3+1 core 4+1 core	Cu(Al)Core, XLPE Insulated, PVCSheathed Power Cable. Cu(Al)Core, XLPE Insulated, PVC Sheathed flame- retardantPower Cable	for laying in doors,Pipeline andin tunnels,but unable to bear pulling force and pressure.
YJV22 ZR-YJV22	YJLV22 ZR-YJLV22	0.6/1kV	1 core 2 core 3 core 4 core 5 core 3+1 core 4+1 core	Cu(Al)Core, XLPE Insulated, SteelTape Armored and PVC Sheathed Power Cable . Cu(Al)Core, XLPE Insulated, SteelTape Armored and PVC Sheathed flame- retardant Power Cable	for laying in doors,in tunnelsand direct under ground,able to bear pulling force and

-   XLPE insulated PVC sheathed power cable (XLPE/PVC Cable)
-   XLPE insulated steel tape armored PVC sheathed power cable (XLPE/STA/PVC Cable)
-   XLPE insulated steel wire armored PVC sheathed power cable (XLPE/SWA/PVC Cable)
-   Flame retardant XLPE insulated PVC sheathed power cable (FR/XLPE/PVC Cable)
-   Flame retardant XLPE insulated steel tape armored PVC sheathed power cable (FR/XLPE/STA/PVC Cable)
-   Flame retardant XLPE insulated steel wire armored PVC sheathed power cable (FR/XLPE/SWA/PVC Cable)

If you have any other cabel need, pls contact us freely.
