high voltage 35KV 120mm2 240mm2 300mm2 XLPE power cable
| Price: |
2.0~66.0 USD |
| Payment Terms: |
T/T,L/C,WU |
| Place of Origin: |
Henan, China (Mainland) |
Product Detail
Model No.:
HV cable
Production Capacity:
10000m/week
Delivery Date:
15days for one container
Type:
High Voltage
Jacket:
PVC
Brand Name:
Aodian
Means of Transport:
Ocean,Land,Air
Packing:
standard wooden drum or ste...
Application:
Overhead
Insulation Material:
XLPE
Conductor Material:
Copper
type:
high voltage XLPE insulated...
1. 35KV cable
2. experienced manufacturer
3. export to many countries
4. good price
5. small MOQ
high voltage 35KV 120mm2 240mm2 300mm2 XLPE power cable
XLPE/PVC High Voltage Power Cable
1.Aluminium or Copper Conductor XLPEInsulated Armored Cable
2.0.6kV~1kV~35kV
- Application:
- Power cables can be used for power networks, underground, outdoors and in cable ducting.
- Standards:
- ASTM, BS6622, IEC etc.
- Conductor:
- Class 2 stranded plain copper conductor to BS EN 60228:2005 (previouslyBS6360)
- Conductor screen:
- Semi-conducting material
- Insulation:
- XLPE (Cross-Linked Polyethylene) Type GP8 to BS7655
- Insulation Screen:
- Semi-conducting material
- Metallic Screen:
- Individual and overall copper tape screen to BS6622
- Filler:
- PETP (Polyethylene Terephthalate) fibres
- Separator:
- Binding tape
- Bedding:
- PVC (Polyvinyl Chloride) Type TM1 to BS7655
- Armour:
- Single Core: Aluminium Wire Armoured (AWA)
Multi-core: Steel WireArmoured (SWA) - Out Sheath:
- PVC (Polyvinyl Chloride) Type TM1 to BS7655
- Colour:
- Red or Black or as clients' request
- Voltage Rating:
- 19000/33000V
- Temperature Rating:
- 0°C to +90°C
- Minimum Bending Radius:
- Single Core: 15 x overall diameter
Three Core: 12 x overall diameter
(Single Core 12 x overall diameter and 3 core 10 x overall diameter wherebands are positioned adjacent to joint or terminations provided that the bendingis carefully controlled by the use of a former)
Type
| Designation |
YJV/YJLV | power cablewith Copper or Aluminum conductor, XLPE insulation and PVC sheath |
YJY/YJLY | |
| YJV22/YJLV22 | power cablewith copper orAluminum conductor, XLPE insulation steel tape armor and PVCsheath |
YJV23/YJLV23 | power cablewith copper orAluminum conductor, XLPE insulation steel tape armor and PE sheath |
| YJV32/YJLV32 | power cablewith copper orAluminum conductor, XLPE insulation thin steel wire armor and PVCsheath |
| YJV33/YJLV33 | power cablewith copper orAluminum conductor, XLPE insulation thin steel wirearmor and PE sheath |
Aodian can produce many other types of XLPE/PVC power cables. If you need more information, pls contact us freely. OEM is accepted.

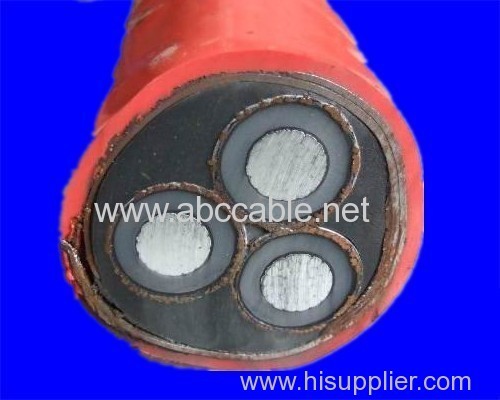

Photo of the high voltage 35KV 120mm2 240mm2 300mm2 XLPE power cable
