110KV high voltage single core XLPE power cable

Price:	2.0~66.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: HV cable

Production Capacity: 10000m/week

Delivery Date: 15days for one container

Type: High Voltage

Jacket: PVC

Brand Name: Aodian

Means of Transport: Ocean,Land,Air

Packing: standard wooden drum or ste...

Application: Power Station

Insulation Material: XLPE

Conductor Material: Copper

type: high voltage XLPE insulated...

1. Fine XLPE insulation
2. competitive price
3. made in China
4. factory direct sale
5. pure copper conductor

110KV high voltage single core XLPE power cable

Standard:

IEC60502,and BS6346, VDE, AS/NZS, UL,etc or as customer's request.

The Rated Voltage(kv):

1st class 0.6/1 1.8/3 3.6/6 6/10 8.7/15 12/20 18/30 21/35
2nd class 1/13/3 6/6 8.7/10 12/15 18/20 - 26/35

Application:

These cables are most suitable for direct burial or for installation on traysor ducts,Where there is
a risk of mechanical damage, armoured cables shouldbe used.

Construction:(Example of YJV32 8.7/15kV)

Copper(aluminum)conductor or conductor screen

XLPE insulation or insulation screen

Color for core identification

Assembly/beding/armoured/outer sheath.

Number of cores:

1core 2core 3core 3+1core 4core 4+1core 4+2core 5core and so on.

Nominal Section
Area(mm2) :1.5 2.5 4 6 10 16 25 35 50 7095 120 150 185 240 300 400 500 630 800
Some common use models

Type		Description	Application
Cu	Al	Description	Application
YJV	YJLV	XLPE insulation PVC sheath power cable	To be laid indoors, in tunnel, cable furrow or pipe, the cable couldn't bearmechanical force outside
YJY	YJLY	XLPE insulation PE sheath power cable
YJV22	YJLV22	XLPE insulation, steel tape armor,PVC sheath power cable	To be laid underground, the cable could bear certain mechanical force, but itcouldn't bear great pulling force.
YJV23	YJLV23	XLPE insulation, steel tape armor,PE sheath power cable
YJV62	YJLV62	XLPE insulation, have no the magnetism steel tape armor,PE sheath powercable
YJV32	YJLV32	XLPE insulation, thin steel-wirearmor,PVC sheath power cable	Be applicable to the well, water inside and fall in the bad soil, the cablecans bear the equal dint outside the machine with pull the dint .
YJV72	YJLV72	XLPE insulation, have no the magnetism thick steel-wirearmor,PVC sheathpower cable
YJV42	YJLV42	XLPE insulation, thick steel-wirearmor,PVC sheath power cable	Be applicable to the well, underwater with the bottom of sea, the cable cansbear the bigger pressure with lead to pull thedint.

U0/Um(kv)

No.of Core

1st class

0.6/1kv

1.8/3kv

3.6/6kv

6/10kv

8.7/15kv

12/20kv

18/30kv

21/35kv

2nd class

1/1kv

3/3kv

6/6kv

8.7/10kv

12/15kv

18/20kv

26/35kv

1 Core

Section

area(mm2)

1.5-800

25-800

35-800

50-800

2 Core

Section

Area(mm2)

1.5-185

3 Core

Section

area(mm2)

1.5-400

25-400

35-400

50-400

4 Core

Section

Area(mm2)

2.5-400

25-400

5 Core

Section

area(mm2)

2.5-400

25-400

Note:many other types of the power cables can be produced. More info needed, pls contact me freely.

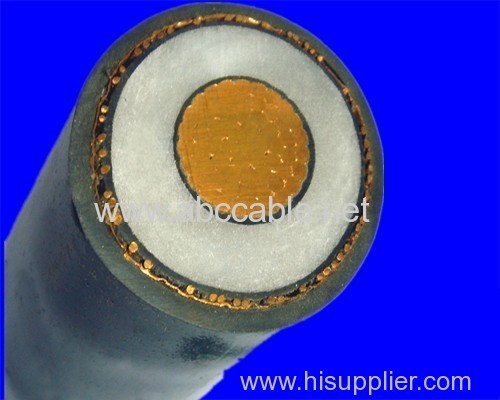

Photo of the 110KV high voltage single core XLPE power cable
