low voltage PVC power cable 2.5mm2 4mm2 6mm2 10mm2

Applications: low voltage PVC power cable 2.5mm2 4mm2 6mm2 10mm2 and fire-resistant cable are suitable for fixed laying in power transmission and distribution lines with AC 50Hz and voltage rating of up to or including 6kV

Construction:

Conductor: Copper, class1 or 2

Insulation: PVC

Filler: PP filler or PVC filled

Sheath: PVC, PE or HDPE

Performance features:
Voltage rating: 0.6/1kV, 3.6/6kV
Long-term permissible operation temperature of conductor shall not be higher than 70° C

Conductor maximum short circuit (not more than 5 seconds) temperature shall not be higher than 160° C

Cable is not limited by drop in level when being laid, and the environment temperature shall not be 0° C

Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents and flame retardant Lightweight, perfect bending properties, installed and maintained easily and conveniently


Standards: IEC, BS, DIN, ASTM, CSA, NFC, AS and more

This series includes:
Copper (aluminum) core, PVC insulated and sheathed power cables
Copper (aluminum) core, PVC insulated, PE sheathed power cables
Copper (aluminum) core, PVC insulated, steel tape armoring PVC sheathed power cables
Copper (aluminum) core, PVC insulated, steel tape armoring, PE sheathed power cables
Copper (aluminum) core, PVC insulated, steel wire armoring, PVC sheathed power cables
Copper (aluminum) core, PVC insulated, steel wire armoring, PE sheathed power cables

Other special characteristics: we can designs and manufacture according to customers' requirements.

Type	Name	Usage
VV	Cu/ AL conductor PVC insulated PVC sheathed power cable	Can be laid at indoor, tunnel and tube. Cable cannot  under take mechanism outside force
VLV
VY	Cu/ AL conductor PVC insulated and PE sheathed power cable	Can be laid at indoor, tunnel tube and serious polluted places. Cable cannot  undertake mechanism outside force
VLY
VV22	Cu/ Al conductor PVC insulated steel type armored and PVC sheathed power cable	Can be laid at indoor, tunnel tube and mining well. Cable cannot undertake mechanism outside force
VLV22
VV32 VLV32	PVC insulated fine steel wire armored PVC sheathed power cable	Can be laid at indoor, underground and mining well. Cable can   undertake mechanism outside force
VV33 VLV33	Cu/Al conductor PVC insulated, Steel wire Armored PE sheathed power cable	Can be laid at indoor, underground and mining well. Cable can   undertake mechanism outside force

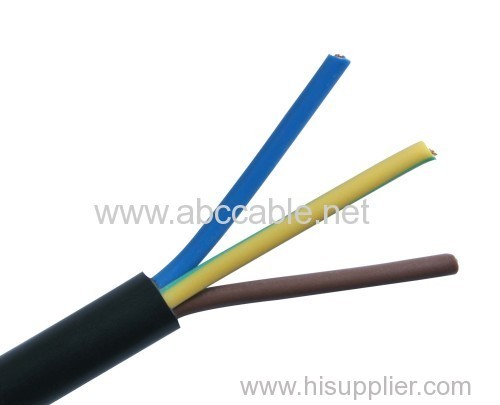

Photo of the low voltage PVC power cable 2.5mm2 4mm2 6mm2 10mm2
