IEC standard copper condutor XLPE insulated PVC sheathed power cable YJV manufacturer from China Zhengzhou Al-Electric Import& Export Co., Ltd.

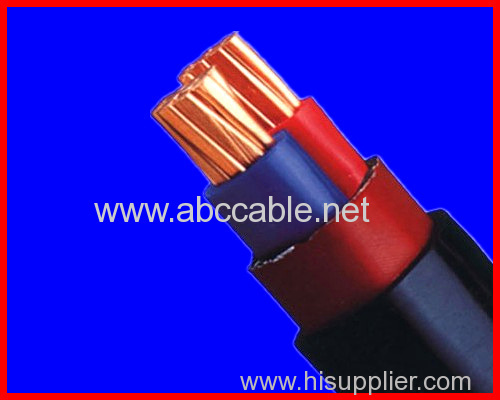

IEC standard copper condutor XLPE insulated PVC sheathed power cable

Price:	0.2~100.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: YJV

Production Capacity: 50000 Kilometer/Kilometers...

Delivery Date: 15days for one container

Insulation Material: PVC

Conductor Material: Copper

voltage: 450/750V

type: flat

standard: IEC, ASTM ,GOST, BS

Means of Transport: Ocean,Land,Air

Packing: roll coil drum

Shielding: Non-Shielded

Jacket: PVC

Brand Name: Aodian

color: multi

size: 2.5mm2, 6mm2, 10mm2, 16mm2

core number: there

1.IEC/ASTM/BS standard
2. good after-serveice
3. first-class equipment
4.decades of manufacture
5.superior quality at competitive price

IEC standard copper condutor XLPE insulated PVC sheathed power cable

Standard:

IEC60502,and BS6346, VDE, AS/NZS, UL,etc or as customer's request.

The Rated Voltage(kv):

1st class 0.6/1 1.8/3 3.6/6 6/10 8.7/15 12/20 18/30 21/35
2nd class 1/13/3 6/6 8.7/10 12/15 18/20 - 26/35

Application:

These cables are most suitable for direct burial or for installation on traysor ducts,Where there is
a risk of mechanical damage, armoured cables shouldbe used.

Construction:(Example of YJV32 8.7/15kV)

Copper(aluminum)conductor or conductor screen

XLPE insulation or insulation screen

Color for core identification

Assembly/beding/armoured/outer sheath.

3.Some common use model

China Model	Name	Uses	Cores	Conductornominal cross section mm2
YJV	Copper core XLPE insulated PVC sheathed power cable	Can be laid in indoors, tunnels and pipelines can not afford cablemechanical external force. Cable can not afford to pull. YJY YJLY	1	1.5~800 2.5~800 10~800
YJY YJLY	Copper core XLPE insulated PVC sheathed power cable	Can be laid in indoors, tunnels and pipelines can not afford cablemechanical external force. Cable can not afford to pull. YJY YJLY	2	1.5~800 2.5~800 10~800
YJV22 YJLV22	Copper core XLPE insulated Galvanized steel Tape armoured PVCsheathed power cable	Can be laid in indoors, tunnels and pipelines can not afford cablemechanical external force. Cable can not afford to pull. YJY YJLY .	3	1.5~400 2.5~400 2.5~400 10~400
YJV23 YJLV23	Copper core XLPE insulated Galvanizedsteel Tape armoured PEsheathed	Can be laid in indoors, tunnels and pipelines can not afford cablemechanical external force. Cable can not afford to pull. YJY YJLY	4	1.5~400 2.5~400 2.5~400 10~400
YJV32 YJLV32	Copper core XLPE insulated Galvanized steel wire armoured PVCsheathed power cable	Can be laid in indoors, tunnels and pipelines can not afford cablemechanical external force. Cable can not afford to pull. YJY YJLY	3+1	1.5~400 4.0~400 4.0~400 10~400
YJV33 YJLV33	Copper core XLPE insulated Galvanized steel wire armoured PEsheathed power cable	Can be laid in indoors, tunnels and pipelines can not afford cablemechanical external force. Cable can not afford to pull. YJY YJLY	4+1	+ 1.5~400 4.0~400 4.0~400 10~400
