ACSR conductor bare Aluminum conductor steel reinforced cable

Price:	2.0~66.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: ACSR

Production Capacity: 50000 Kilometers one week

Delivery Date: 15days for one container

Type: Bare

Conductor Material: Others

Brand Name: aodian

type: stranded

place of origin: China

quality: standard

conductor: aluminum conductor steel re...

Means of Transport: Ocean,Land,Air

Packing: standard wooden drum or ste...

Application: Overhead

Insulation Material: Others

Conductor Type: Stranded

voltage: LV MV HV

standard: BS215, Part1

model: ACSR

package: wooden drum

color: Silver or gray

1. ACSR
2. Aluminum conductor steel reinforced
3. ASTM/DIN/BS/AS/NZS standard
4. Made in China
5. export to many countries

ACSR conductor bare Aluminum conductor steel reinforced cable

Application:

The ACSR conductor bare Aluminum conductor steel reinforced cable can produced at various grade voltages. It is very suitable for laying across basins,rivers and valleys where special geographical terrain exist.

Standard:

According to IEC,also can do by standard of ASTM,BS,GB,DIN and AS/NZS or other standards.

Construction:

ACSR is composed by concentric-lay-stranded galvanized steel wires and aluminium wires.

Characters:

a.Under the same weight,ACSR is with lower cost than Copper conductor

b.In order to foster the prevention of corrosion,the non-oxidizing grease can be fully or partially applied to ACSR

c.ACSR offers optimal strength for line design.Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.

Advantages:

a. Excellent electric and mechanical characteristics.

b. Good conductivity,Resistance chemical corrosion and heat-ageing,environment stress.

c. Unit volume light,Simple in structure.

d. Convenient to use,especially for laying across rivers and valleys where special geographical terrain exsit.

Code name	Nominal Area	Stranding&Wire Diameter		Approx Overall Diameter	Sectional Area			Approx Weight	Breaking Load	DC Resistance
	Nominal Area	Al	Steel	Approx Overall Diameter	Al	Steel	Total	Approx Weight	Breaking Load	DC Resistance
	mm²	mm	mm	mm	mm²	mm²	mm²	Kg/km	KN	Ohm/km
Squirrel	20	6/2.1	1/2.1	6.33	21	3.50	24.5	84.8	7.87	1.3659
Gopher	25	6/2.36	1/2.35	7.08	26.24	4.38	30.62	106	9.61	1.093
Ferret	40	6/3	1/3	9	42.41	7.07	49.48	172	15.2	0.6766
Rabbit	50	6/3.35	1/3.34	10.04	52.88	8.81	61.7	214	18.35	0.5426
Mink	60	6/3.66	1/3.66	11	63.1	10.5	73.6	254.9	21.67	0.454
Horse	70	12/2.79	7/2.79	13.95	73.37	42.83	116.2	538	61.2	0.3936
Dog	100	6/4.72	7/1.57	14.15	105.00	13.5	118.5	393	32.7	0.2732
Wolf	150	30/2.59	7/2.59	18.13	158.10	36.80	194.90	726	69.20	0.1828
Goat	300	7/3.71	7/3.71	26.00	324.3	75.70	400.0	1488.2	135.13	0.0891
Bison	350	7/3.00	7/3.00	27.00	381.7	49.50	431.2	1442.5	121.30	0.0758
Zebra

Aluminum Conductor Steel Reinfored ACSR is our typical products, and have been exported to East South Asia,Middle-east,Africa,South Afirca,Indonesia,Malaysia,Jordan, Somalia,Ghana, Malawi,Dubai,USA. etc. in the last few years.

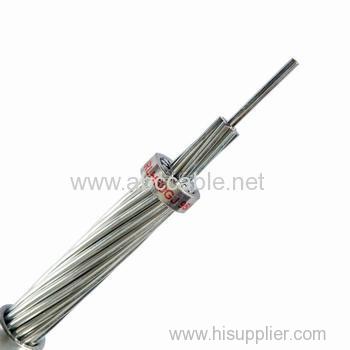

Photo of the ACSR conductor bare Aluminum conductor steel reinforced cable
