High quality of copper conductor rubber insulated rubber cable welding cable manufacturer from China Zhengzhou Al-Electric Import& Export Co., Ltd.

Product Detail

Model No.: welding cable

Production Capacity: 50000m/week

Delivery Date: 15days for one container

Type: Low Voltage

Jacket: Rubber

Brand Name: Aodian

core: one core

standard: IEC/GB/DIN

Means of Transport: Ocean,Land,Air

Packing: standard wooden drum or ste...

Application: Industrial

Insulation Material: Rubber

Conductor Material: Copper

type: rubber cable

sheathed: non-sheathed

1. factory delivery
2. standards: IEC60245/GB/DIN
3. decades of manufacture
4. superior quality
5.preferential price

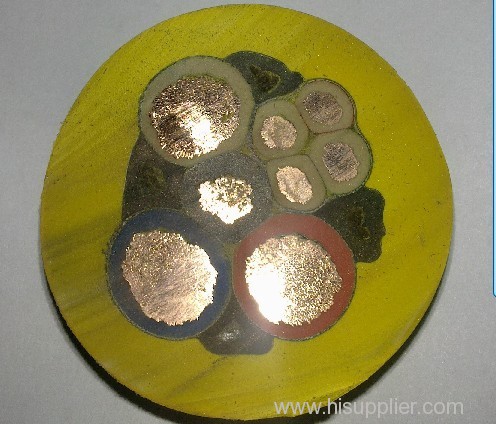

High quality of copper conductor rubber insulated rubber cable

Applications

Rubber insulated wires and cables is suitable for power device with moving installation and rated voltage up to

and including 450/750V.

Characteristics

1. Rated power-frequency voltage U0/U: 450/750V, 300/500V and 300/300V.

2. Maximum permitted operating temperature of conductor is 60°C.

3. Permitted lowest working temperature is -35°C.

4. Cables can be used at places contaminated by mineral oil and fuel oil.

5. D>25mm

The minimum bending radius is over 6 times of cable diameter.

D≤25mm

The minimum bending radius is over 4 times of cable diameter.

(D-Diameter of the cable)

Specification

Type	Name
YQ	NR/SBR rubber insulated NR/SBR rubber sheathed flexible cables (wires) for light duty
YQW	NR/SBR rubber insulated neoprene rubber sheathed flexible cables (wires) for light duty
YZ	NR/SBR rubber insulated NR/SBR rubber sheathed flexible cables (wires) for middle duty
YZW	NR/SBR rubber insulated neoprene rubber sheathed flexible cables (wires) for middle duty
YC	NR/SBR rubber insulated NR/SBR rubber sheathed flexible cables (wires) for heavy duty
YCW	NR/SBR rubber insulated neoprene rubber sheathed flexible cables (wires) for heavy duty
YH	NR/SBR rubber sheathed arc welding cable
THF	Neoprene rubber sheathed arc welding cable

Note: suffix W means cable has the properties of weather and oil resistance, suitable for the places outdoors

and contaminated by the oil.

Production range

Type	Rated voltage (V)	Cross-section (mm2)	No. of cores	Applications
YQ YQW	300/300	0.3-0.75	2-5	Used for light portable electric equipment and tools
YZ YZW	300/500	1.5-6	2-5	Used for various portable electric equipment and tools
YC YCW	450/750	1.5-120	2-5	Used for various portable electric equipment which can bear large mechanical force effect
YH YHF	-	10-185	1	For arc welding
