bare AAAC conductor BS 3242 standard Almond/Fir/Hazel/Ash/Elm

Price:	2.0~66.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: AAAC

Production Capacity: 50000 Kilometers one week

Delivery Date: 15days for one container

Type: Bare

Conductor Material: Aluminum

Brand Name: aodian

type: stranded

place of origin: China

quality: standard

material: aluminum alloy

Means of Transport: Ocean,Land,Air

Packing: standard wooden drum or ste...

Application: Overhead

Insulation Material: Others

Conductor Type: Stranded

voltage: LV MV HV

standard: BS215, Part1

model: AAAC

package: wooden drum

color: Silver or gray

1.BS 3242 standard
2.Almond/Fir/Hazel/Ash/Elm models
3.Upas/Cedar
4.Fine material
5.Advanced technology

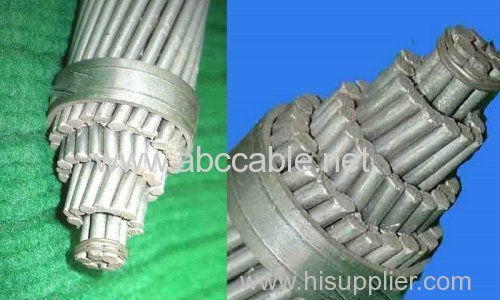

bare AAAC conductor BS 3242 standard Almond/Fir/Hazel/Ash/Elm

Introduction

AAAC have been widely used in powertransmission lines with various voltage levels, and also used in power linesacross great rivers, heavy ice area, etc. The cables have excellent advantagesof high strength, large current carrying capacity and good catenary property aswell as wear-resistance, anti-crush and corrosion-proof with simple structure,convenient installation and maintenance, low cost for the line, largetransmission capacity.

Al-electric can supply this conductor according to different recognized standards, such as BS EN50182, IEC61089, ASTM B399, DIN48201, and Customers special specification also can be satisfied.

Construction
Standard 6201-T81 high strength aluminum conductors, conformingto ASTM Specification B-399, are concentric-lay- stranded, similar inconstruction and appearance to 1350 grade aluminum conductors. Standard 6201alloy conductors are similar to other alloy conductors commercially known asArdival, Aldrey or Almelec. They were developed to fill the need for aneconomical conductor for overhead applications requiring higher strength thanthat obtainable with 1350 grade aluminum conductors, but without a steel core.The DC resistance at 20°C of the 6201-T81 conductors and of the standard ACSRsof the same diameter are approximately the same. Conductors of the 6201-T81alloys are harder and, therefore, have a greater resistance to abrasion thanconductors of 1350-H19 grade aluminum.

Specifications
AAAC bare conductormeets or exceeds the following ASTM specifications :
B-398 Aluminum Alloy6201-T81 Wire for Electrical Purposes
B-399 Concentric-Lay-Stranded 6201-T81Aluminum Alloy Conductors.

Area		Overall Diameter
AWG or MCM	mm	mm
6	13.3	4.64
4	21.1	5.87
2	33.6	7.4
0	53.5	9.36
2/0	67.4	10.5
3/0	85	11.79
4/0	107.2	13.26
250	126.7	14.54
300	152	15.95
350	177.3	17.24
400	202.7	18.45
450	228	19.55
500	253.4	20.60
550	278.7	21.70
600	304.0	22.61
650	329.4	23.59
700	354.7	24.43
750	380.0	25.34
800	405.4	26.11
900	456.0	27.72
1000	506.7	29.25
