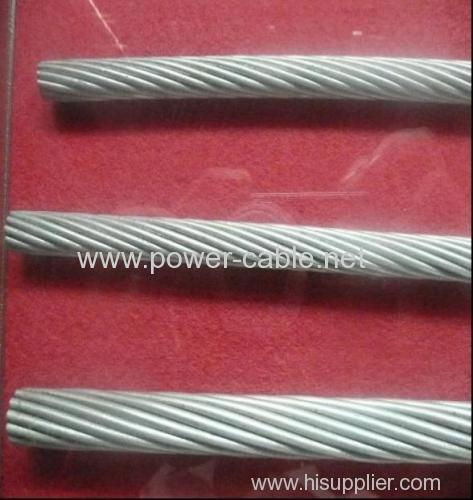

High quality stay wire 1*19 galvanized steel guy wire

Price:	2.0~66.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: Guy wire

Production Capacity: 5000 Kilometers one week

Delivery Date: 15days for one container

Type: Bare

Conductor Material: Aluminum

Brand Name: aodian

type: stranded

Jacket: Bare

Means of Transport: Ocean,Land,Air

Packing: standard wooden drum or ste...

Application: Overhead

Insulation Material: Others

Conductor Type: Stranded

minimun voltage: 1KV

standard: IEC, ASTM, DIN, BS, AS/NZS,...

Alloy Or Not:: Is Alloy

1.IEC/ASTM standard
2. Best quality and competitive price
3. Fast delivery
4. Technology guarantee
5.professional system

High quality stay wire 1*19 galvanized steel guy wire

Conductors for overhead lines
IEC888, ASTM498/475/, DIN 48200
Diameter range: 0.6mm to 4.9mm, OR 7/32, 1/4, 5/16, 3/8, 7/16, 1

Conductors for overhead lines
IEC888, ASTM498/475/, DIN 48200
Diameter range: 0.6mm to 4.9mm, OR 7/32, 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, and 5/8-inch
Usage: guy strand, ACSR, baling wire, messenger wire, self-support cable, and ACSR
Suitable for ACSR, aluminum conductors (cable) steel-reinforced
<small>Disclaimer: All trademarks shown here are for reference purposes only. They are the property of their respective owners, and we are not authorized to sell items bearing such trademarks

Suitable for hanger, hang, communication cable, the power line for built on stiltsand, and immobility thing or tiedown ,etc.All products aan organize producing according to standards such as GB, BS, ASTM, IEC,etc.

1 Suitable for hanger, hang, communication cable

2 the power line for built on stiltsand, and immobility thing or tiedown ,etc.

3 we are standard maker

4 our annual output is over 20000MT

5 we have attained ISO9001 quality management system certification

6 and the ISO14001 quality environment system certification

7 we have more than 200 member staff

Number of wires in strand	Stee wire diameter mm	Norminal diameter of the strand mm	The cross section area of strand mm²	Nominal tensile streng of Gal.steel wire Mpa					Approximate Weight of stand per Kg/100M
				1175	1270	1370	1470	1570
				Breaking strength of strand KN≥
1×19	1.60	8.0	38.2	44.88	48.51	52.38	56.15	59.97	30.40
	1.80	9.0	48.35	56.81	61.40	66.24	71.07	75.91	38.49
	2.00	10.0	59.69	70.14	75.81	81.77	87.74	93.71	47.51
	2.20	11.6	72.22	84.86	91.71	98.94	106.16	113.39	56.69
	2.30	11.5	78.94	92.75	100.25	108.15	116.04	123.94	62.84
	2.60	13.0	100.88	118.53	125.12	138.20	148.29	158.38	80.30
	2.90	14.5	125.50	147.46	159.38	171.93	184.48	197.03	99.90
	3.00	15.0	134.30	157.80	170.56	183.99	197.42	210.85	105.43
	3.20	16.0	152.81	179.55	194.06	209.35	224.63	239.91	121.64
