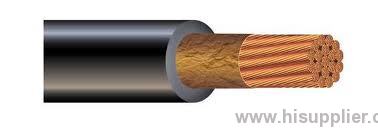

High quality copper conductor PVC insulated nylon jacket THHN cable

Price:	0.1~9.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: THHN cable

Production Capacity: 5000 kilometers

Delivery Date: 10 days for one container

Voltage: Low Voltage

Size: 1.5mm2/2.5mm2/4mm2/6mm2/10m...

insulation: PVC

Means of Transport: Ocean,Land,Air

Packing: 100 meters per coil

Color: multi

Type: building Wire

jacket: nylon

1.UL standard THHN cable
2.Standard:UL83
3.Voltage:450/750V
4.Decades of manufacture
5.Superior quality at competitive price
6.nylon jacket

High quality copper conductor PVC insulated nylon jacket THHN cable

1. THHN Wire Applications:
THHN building wire is meant for use as general purpose wiring for installation in conduit or other recognized raceway. THHN may also be used for machine tool, appliance and control circuit wiring.

2.THHN Wire Approvals:

· UL listed Stds. 83 & 1063 as: Type THHN Wire 90°C in dry locations, Type THWN Wire 75°C in wet locations.

· A-A-59544, NEMA WC-5, UL-758

· CSA approval upon request

3.THHN Wire Description:

· Conductor:Bare copper, Soft Drawn

· Insulation:PVC

· Jacket:NYLON

· Standard Colors(denoted by a dash and number code following the part number below): Black (-0), Brown (-1), Red (-2), Orange (-3), Yellow (-4), Green (-5), Blue (-6), Violet (-7), Gray (-8), White (-9), Pink (-10), Tan (-11); Striping and Other colors available upon request.

· Gasoline & oil resistant - Type MTW 90°C Machine Tool Wire (stranded only) 105°C AWM, 80°C where exposed to oil.

4.THHN Wire Ratings:

· THHN-THWN: 75°C Oil, 75°C Wet, 90°C Dry, 600V

· THWN-2: 75°C Oil, 90°C Wet, 90°C Dry, 600V

· MTW: 60°C Oil, 60°C Wet, 90°C Dry, 600V

· AWM 1316 to 1321: 80°C Oil, - Wet, 105°C Dry, 600V

· AWM 1408 to 1414: 60°C Oil, 60°C Wet, 90°C Dry, 600V

· AWM 1452 to 1453: 80°C Oil, - Wet, 90°C Dry, 600V

· T90 NYLON: 60°C Oil, - Wet, 90°C Dry, 1000V

· TWN 75: - Oil, 75°C Wet, - Dry, 600V

Type	Name	Laying place and requirement	Long term working Temperature ⁰C
60227IEC01 05 BV BLV	Copper conductor PVC insulated wires Aluminum conductor PVC insulated wires	Fixed laid indoors Conduit etc.	70
60227IEC07 (BV-90)	Heat resistant copper conductorPVC insulated wire at 90 ⁰C	Mainly be laid at the places of high temperature environment and can be laid indoors ,conduits.	90
BVR	Copper conductor PVC insulated flexible cable	Be for laying permanent place where flexible required.	70
60227IEC10 (BVV) BVV	Copper conductor PVC insulated PVC sheathed round wires	Fixed laid, fit for the places with high mechanical protection and moisture place, can be laid in the air or underground.	70
BLVV	Aluminum conductor PVC insulated PVC sheathed round wires
BVVB	Copper conductor PVC insulated PVC sheathed flat wires
BLVVB	Aluminum conductor PVC insulated PVC sheathed flat wires
60227IEC02(RV) 60227IEC06(RV)	Copper conductor PVC insulated flexible connector wire	Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required	70
60227IEC42(RVB)	Copper conductor PVC insulated flat flexible connector wire
RVS	Copper conductor PVC insulated flexible twisting connector wire
60227IEC52(RVV) 60227IEC53	Copper conductor PVC insulated PVC sheathed round flexible connector wire
60227IEC08 (RV-90)	Cu conductor heat resistant PVCinsulated flexible connector wire at 90 ⁰C	Mainly used at the places where heat resistance is required	90
