copper conductor PVC insulated PVC sheathed round cable RVV manufacturer from China Zhengzhou Al-Electric Import& Export Co., Ltd.

Product Detail

Model No.: RVV

Production Capacity: 50000m/week

Delivery Date: 15days for one container

Type: Low Voltage

Jacket: PVC

Brand Name: Aodian

color: multi

material: copper

Means of Transport: Ocean,Land,Air

Packing: standard wooden drum or ste...

Application: Construction

Insulation Material: PVC

Conductor Material: Copper

type: electric wire

voltage: 450/750V

1.450/750V copper PVC insulated flexible wire
2.ISO9001 SGS SONCAP CIS
3.Ten years' experience
4.superior quality at competitive price

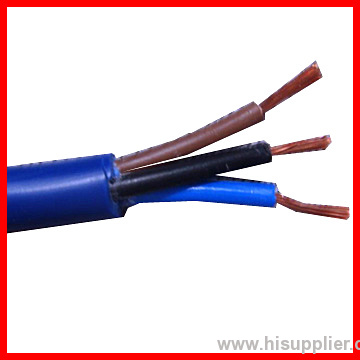

copper conductor PVC insulated PVC sheathed round cable

450/750V copper conductor PVC insulated flexible wire

1.Standard:IEC60227

2.Certificate:ISO/CE/CCC

3.Voltage:450/750V,300/500V,300/300V

4.Working Temperature:

BV-105 model not more than 105°C, others not more than 75°C installation temperature not lower than 0°C.

Model and Name

Model	Name
BV	Copper core PVC insulation power line
BLV	Aluminium core PVC insulation power line
BVR	Copper core PVC insulation flexible power line
BVV	Copper core PVC insulation PVC sheath round power line
BVVB	Copper core PVC insulation PVC sheath parellel power line
BLVVB	Aluminium core PVC insulation PVC sheath parellel power line

Type	Name	Laying place and requirement	Long term working temperature
227IEC01/05 BV BLV	Copper conductor PVC insulated wires	Fixed laid indoors,conduits etc.	70
227IEC01/05 BV BLV	Aluminum Conductor PVC insulated wires	Fixed laid indoors,conduits etc.	70
227IEC07 BV-90	Heat resistant copper conductor PVC insulated wires at 90	Mainly be laid at the places of high temperature environment and can be laid indoors,conduits.	90
BVR	Copper conductor PVC insulated flexible wire	Be for laying permanent place where flexible required	70
227IEC10 BW	Copper conductor PVC insulated PVC sheathed round wires	Fixed laid,fit for the places with high mechanical protection and moisture place.Can be laid in the air or underground.	70
BLW	Aluminum conductor PVC insulated PVC sheathed round wires
BWB	Copper conductor PVC insulated PVC Sheathed flat wires
BLWB	Aluminum conductor PVC insulated sheathed flat wires
227IEC02RV 227IEC06RV	Copper conductor PVC insulated flexibleconnector	Mainly used at middle and linht stylemoving electronics,home appliances,power and lighting and the places where flexible required.	70
227IECC42 RVB	Copper conductor PVC insualted flat flexible connector
RVS	Copper conductor PVC insulated flexibletwisting connector wire
227IEC52 RW 227IEC53 RW	Copper conductor PVC insulated PVC sheated round flexible connector(light and common type)

Comprehensive Data table of BV BLV Type PVC insualted wire

Nominal sectional area mm²	Conductor No/Dia. mm	Nominal Insulated thick mm	Max overall Dia. mm	Condcutor Resistance at 20		Min insulated resistance at 70MΩ/km	Weight Kg/km
Nominal sectional area mm²	Conductor No/Dia. mm	Nominal Insulated thick mm	Max overall Dia. mm	Cu	Al	Min insulated resistance at 70MΩ/km	Cu	Al
1.5	1/1.38	0.7	3.3	12.1	-	0.011	19.2	-
1.5	7/0.52	0.7	3.5	12.1	-	0.010	20.6	-
2.5	1/1.78	0.8	3.9	7.41	11.8	0.010	30.8	15.0
4	1/2.25	0.8	4.4	4.61	7.39	0.0085	45.5	21.0
6	1/2.76	0.8	4.9	3.08	4.91	0.0070	65.0	29.0
10	7/1.35	1.0	7.0	1.83	3.08	0.0065	110.0	52.0
16	7/1.70	1.0	8.0	1.15	1.91	0.0050	170.0	70.0
25	7/2.14	1.2	10.0	0.727	1.20	0.0050	270.0	110.0
35	7/2.52	1.2	11.5	0.524	0.868	0.0040	364.0	150.0
50	19/1.78	1.4	13.0	0.387	0.641	0.0045	500.0	200.0
70	19/2.14	1.4	15.0	0.268	0.443	0.0035	688.0	269.0
95	19/2.52	1.6	17.5	0.193	0.320	0.0035	953.0	360.0
120	37/2.03	1.6	19.0	0.153	0.253	0.0032	1168.0	449.0
150	37/2.25	1.8	21.0	0.124	0.206	0.0032	1466.0	551.0
185	37/2.52	2.0	32.5	0.099	0.164	0.0032	1808.0	668.0

Type BVR 450/750V copper conductor PVC insulate flexible wire

Nominal sectional area mm²	Conductor No/Dia. mm	Nominal Insulated thick mm	Max overall Dia. mm	Condcutor Resistance at 20	Min insulated resistance at 70MΩ/km	Weight Kg/km
2.5	9/0.41	0.8	4.2	7.41	0.011	33.0
4	19/0.52	0.8	4.8	4.61	0.009	48.0
6	19/0.64	0.8	5.6	3.08	0.0084	68.0
10	49/0.52	1.0	7.6	1.83	0.0072	115.0
16	49/0.64	1.0	8.8	1.15	0.0062	176.0
25	98/0.58	1.2	11.0	0.727	0.0058	272.0
35	133/0.58	1.2	12.5	0.524	0.0052	384.0
50	133/0.68	1.4	16.5	0.387	0.0051	510.0
70	189/0.68	1.4	16.5	0.268	0.0045	714.0
95	259/0.68	1.6	19.5	0.139	0.0035	965.0
120	259/0.76	1.8	22.0	0.153	0.0032	1210.0
150	259/0.85	1.8	25.0	0.124	0.0032	1510.0
