copper conductor XLPE insulated PVC sheathed copper wire screened control cable

Price:	2.0~66.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: ontrol cable

Production Capacity: 10000m/week

Delivery Date: 15days for one container

Insulation Material: PVC

Conductor Material: Copper

type: PVC control cable instrumen...

color: multi

screen material: copper tape

Means of Transport: Ocean,Land,Air

Packing: standard wooden drum or ste...

Shielding: Others

Jacket: PVC

Brand Name: Aodian

conductor: copper

voltage: 450/750V

1 made in China
2.decades of manufacture
3.preferential quality at competitive price
4.ISO 9001:2000,CCC.
5.fast delivery

copper conductor XLPE insulated PVC sheathed copper wire screened control cable

1. Characteristics and Applications of the Products:

Plastic insulated control cable is used to connect electrical equipments. It applies to controlling, monitoring and protective system with A.C. rated voltage U₀/U up to and including 450/750v.

The main features of the flame retardant PVC control cable is hard to get fire or that the continuous buring of cables is very limited when it is on fire .It applies to the places with special demands of flame retardant property.

Fire resistant cable can operate normally for some time when it is burning except that is transmit electrical power under normal condition.It is used in the places necessary to resist fire.

2.Operating characteristics:

(1)The long-time permissible operating temperature is 70^oC;

The ambient temperature under installation should not go below 0^oC.

(2)a. for non-armoured cable and flexible shielded cable, the bending radius should not be less than 6 times the outer diameter;

b. for armoured or copper-tape shielded cable, the bending radius should not be less than 12 times the outer diameter; copper conductor XLPE insulated PVC sheathed copper wire screened control cable

Model	Description	Application
KVV	copper conductor, PVC insulated, PVC sheathed, control cable	Suitable for being laid indoors, in cable trench, pipelines or other specific occasions.
KVVP	copper conductor, PVC insulated, PVC sheathed, braided, shielded, control cable	Suitable for being laid indoors, in cable trench, pipelines or other specific occasions that demands shielding.
KVVP2	copper conductor, PVC insulated, PVC sheathed, copper-tape shielded, control cable
KVV22	copper conductor, PVC insulated, PVC sheathed, steel-tape armored, control cable	Suitable for being laid indoors, in cable trench and pipelines, directly burial or other specific occasions with a relatively large capacity for mechanical stretching force.

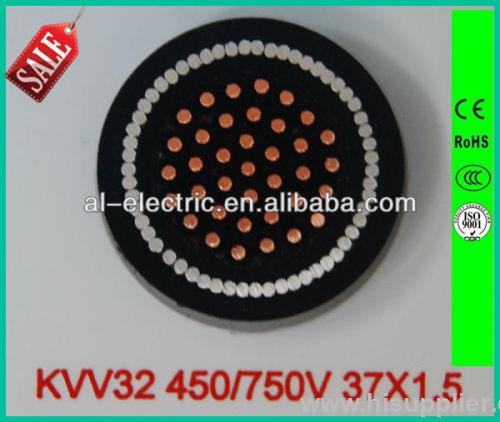

KVV32	copper conductor, PVC insulated, PVC sheathed, thin steel wire-armored, control cable	Suitable for being laid indoors, in cable trench, pipelines, silo or other specific occasions that demands shielding.
KVVR	copper conductor, PVC insulated, PVC sheathed, flexible, control cable	Suitable for being laid indoors and places that demands moving cables with flexibility.
KVVRP	copper conductor, PVC insulated, PVC sheathed, braided shielded, flexible, control cable	Suitable for being laid indoors and shielded places that demands moving cables with flexibility.
