medium voltage XLPE insulated power cable from China manufacturer - Zhengzhou Al-Electric Import& Export Co., Ltd.

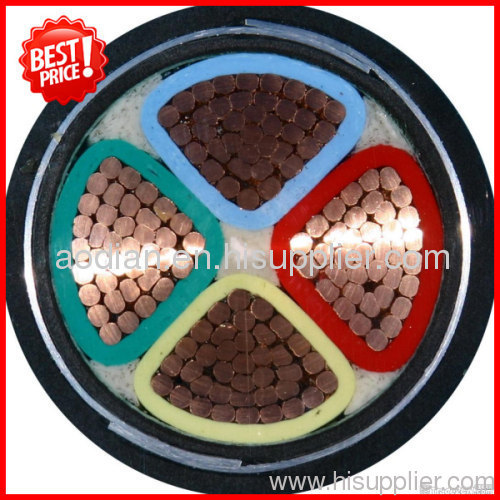

medium voltage XLPE insulated power cable

Price:	2.0~66.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: YJV

Production Capacity: 10000m/week

Delivery Date: 15days for one container

Type: Medium Voltage

Jacket: PVC

Brand Name: Aodian

Means of Transport: Ocean,Land,Air

Packing: standard wooden drum or ste...

Application: Marine

Insulation Material: XLPE

Conductor Material: Copper

type: PVC insulated power cable

1. ISO9001/SONCAP/SGS/CIS
2. ASTM/ BS/ DIN IEC standard
3.best quality at competitive price
4. fast delivery

Standard and Property for Using
The products can be produced according to our factory specification which is equivalent to the standard IEC60502. The factory can also design and manufacture special XLPE cable according to the other standards required by the customers. They not only have excellent electric, mechanical properties, but also have powerful resistance against chemical corrosion, heataging and environmental stress. Their structures are simple. The permissible maximum operating temperature is 90'C. It is convenient for using, and they can be laid with no restriction of different elevation.

Rate
Voltage(kv)

Sectional
Area(mm 2 )

No.of Core

1st class

0.6/1

1.8/3

3.6/6

6/10

8.7/15

12/20

18/30

21/35

2nd class

1/1

3/3

6/6

8.7/10

12/15

18/20

26/35

1 Core

1.5-800

25-800

25-1200

35-1200

50-1200

2 Core

1.5-185

25-185

3 Core

1.5-400

25-400

35-400

50-400

4 Core

2.5-400

25-400

5 Core

2.5-400

25-400

Type		Name	Main Application
Cu Core	Al Core	Name	Main Application
YJV YJY	YJLV YJLV	XLPE insulated,PVC or PE Sheathed Power Cable	For laying indoor,tunnel,channel and undergroud,Unable to bear external mechanical force,but bear the traction force during laid
YJV₂₂ YJV₂₂	YJLV₂₂ YJV₂₂	XLPE Insulated,Steel Tape Armoured,PVC or PE Sheathed Power Cable	For laying indoor,tunnel,channel and undergroud Able to bear external mechanical force,but unable to bear large pulling force
YJV₃₂ YJV₃₂	YJLV₃₂ YJLV₃₂	XLPE Insulated,Fine Steel Wire Armoured,PVC or PE Sheathed Power Cable	For laying in shaft with large difference of level.Able to bear external machanical force and maderate pulling force
YJV₄₂ YJV₄₂	YJLV₄₂ YJLV₄₂	XLPE Insulated,Thick Steel Wire Armoured,PVC or PE Sheathed Power Cable	Able to bear positive pressure and pulling force

Note:"ZR-"Include ABC three kinds of flame retardent cables,which are spectively indicated in "ZRA-" or "ZRB-" "ZRC-".For example:"ZRB-YJV","ZRA-YJV₂₂".
